35°Escalator

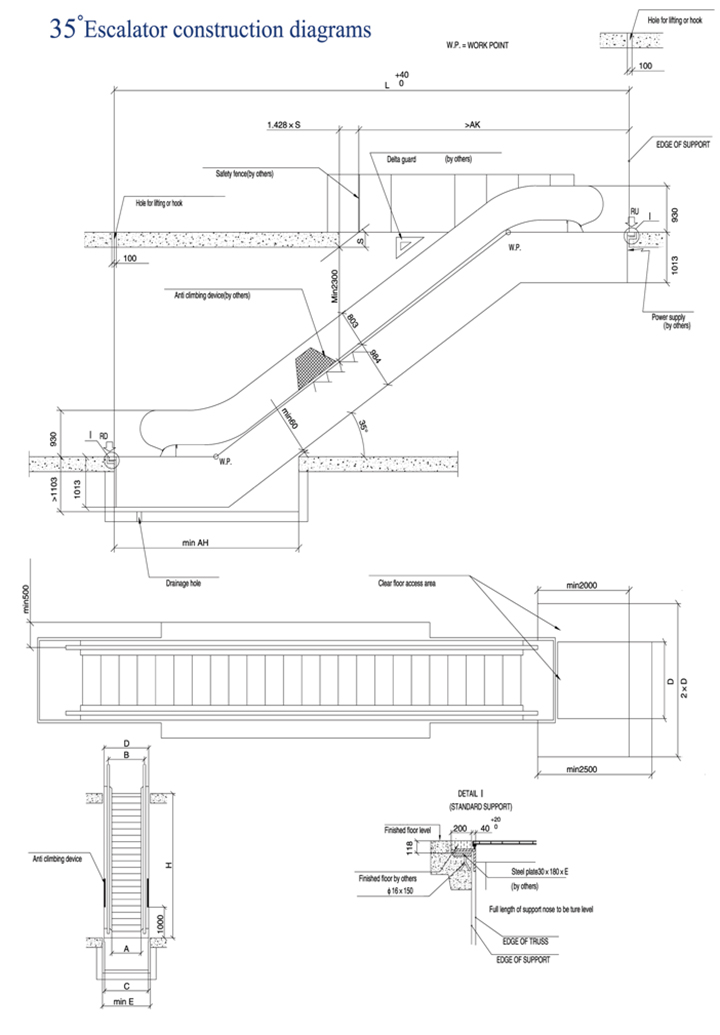

35 Escalator construction diagrams

α
Angle		 （m/s）
Speed		 H
(mm)
Rise		 A
(mm)
Step width		 (mm)
Span		 Other dimensions(mm) Support reaction force (KN)
min AH AK B C D E RU PD
35° 0.5 H≤6000 1000 1.428H
+
4905		 4060 5950 1237 1500 1530 1640 5.11L
+
13		 5.11L
+
5
800 1037 1330 1330 1440 4.41L
+
15		 4.41L
+
9
600 1.428H
+
5405		 6450 837 1100 1130 1240 3.76L
+
18		 3.76L
+
12
